LiquidSecurity® HSM Adapter

Overview

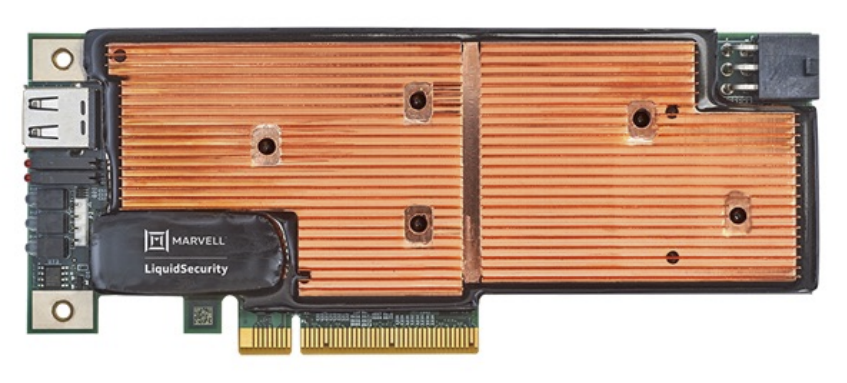

The Marvell FIPS 140-2 Compliant LiquidSecurity HSM Adapter brings together the high-performance hardware acceleration of the Marvell NITROX III security macro-processors and the trusted strength and security of the FIPS 140-2 standard.

The hardware module has a FIPS-compliant security boundary that ensures the integrity of the cryptographic material. Together with a complete software development kit, it significantly reduces the cost, complexity, and time to develop products targeted at high-value, high-security e-commerce and e-business applications.

Design Benefits

Below listed are some design benefits of Marvell LiquidSecurity® HSM Adapter
  • Software and hardware support from Marvell enables a short development cycle and time-to-market process.
  • Reduced FIPS boundary size.
  • Reduced system complexity.
  • Reduced validation cost and time.
  • Instant appliance validation.

Target Applications

Secure Web Servers:
Web Servers used in e-Commerce
Signature verification for B2B exchanges
Web Switches and Appliances
SSL/TLS Termination and Content switching
Content Aware Server Load Balancing
SSL Proxy Server
Remote Access Servers using SSL
SSL VPN appliances
Servers with SSL secure email
Other web-enabled applications like CRM and ERP suites

Techical Specifications

HSM Capabilities Description
Cryptographic and Secure Operations
  • Asymmetric: RSA, DSA, Elliptical curve (ECDH/ECDSA)
  • Symmetric: AES (CBC, GCM, CCM, and CMAC modes), 3DES, Generic Secret
  • Key Derivation: SP800-108 Counter Mode, HMAC/CMAC/HKDF/ECDH
  • Key wrapping/unwrapping: SP 800-38F
  • Hash/Message Digests: SHA1/SHA2
  • Random Number Generation: SP800-90
  • MofN Quorum Control
Security Certifications
  • FIPS 140-2, 140-3*
  • eIDAS*
Management and Monitoring
  • Identity-based authentication
  • Multiple Partitions with user/admin levels
  • Remote administration
  • Isolated partitions
  • Audit Logging
  • SMBus for diagnostics monitoring
  • Tamper evident detection and zeroization
APIs
  • Java (JCA/JCE)
  • Microsoft CNG / KSP
  • OpenSSL Engine
  • PKCS#11
  • Cfm-API Management Tools
Safety & Environmental Compliance
  • Safety:
    • UL and CE
  • Emissions:
    • EN 55022 (2015) Class B for digital emissions
    • EN 55024 (1998 w/A1:01 and A2:03) for immunity
  • AS/NZS CIPSR22 Class B
  • WFCC Part 15 Subpart B, sections 15.107 and 15.109 Class B
  • VCCI V-3 (2009.04) Class B for digital emissions.
  • KCC KN32 & KN35, Class B
  • ICES, Class B
Hardware
  • PCIe Gen2 x8 interface
  • Dimensions: 2.1” x 6.6”
  • SMBus, FRAM support for additional logging, firmware counters
Operating Environment
  • Ambient temperature range: 0 to 45°C
  • Minimum air flow: 500 LFM
Reliability
  • High Availability and Load Balancing
  • Backup and Restore
  • MTBF 1,511,929 hrs (Telcordia SR-332)
Supported Operating Systems
  • RHEL 7.x, CentOS 7.x, Ubuntu
  • Xen and KVM
  • Windows
Secure Channel
  • E2E (TLS-based) connectivity from the LiquidSecurity client to FIPS boundary
* In Progress

Part Numbers

Part Number Description
CNL3505LP-NFBE-3.0-G NITROX III FIPS Adapter with bits enabled to work as Network HSM. LiquidSecurity software access enabled with part.
CNL3510-NFBE-3.0-G NITROX III FIPS Adapter with bits enabled to work as Network HSM. LiquidSecurity software access enabled with part.
CNL3510LP-NFBE-3.0-G NITROX III FIPS Adapter with bits enabled to work as Network HSM. LiquidSecurity software access enabled with part.
CNL3530-NFBE-3.0-G NITROX III FIPS Adapter with bits enabled to work as LiquidSecurity adapter.
CNL3560-NFBE-3.0-G NITROX III FIPS Adapter with bits enabled to work as LiquidSecurity adapter.
CNL3560B-NFBE-3.0-G NITROX III FIPS Adapter with bits enabled to work as Network HSM. LiquidSecurity Software access enabled with part.
CryptoBind HSM
These modules are being used in CryptoBind HSM
